Dom /Produkty/Generator Diesla SDEC/8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct

8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct

8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Gwarancja: Dostosowane
Typ: Cichy (super cichy) lub otwarty, cichy itp., rzędowy/6-cylindrowy/4-suwowy/4-zaworowy/19 l, dźwiękos
Panel sterowania: Cyfrowy wyświetlacz LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Typ wyjścia: AC jednofazowy/trójfazowy
Kontroler: Deepsea/Smartgen/itd
Aplikacja: bank branżowy itp
Napięcie znamionowe: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford lub Newtec, Engga
Nazwa produktu: Generator diesla, generator 10 kVA, zasilany generatorem diesla YUCHAI, generator diesla o mocy 8 kW
Kolor: Wymagania klientów
Częstotliwość: 50/60 Hz
Moc znamionowa: 8kW
SILNIK: Oryginalny SDEC
Metoda chłodzenia: System chłodzenia wodą
Podkreślić:

8kW silent diesel generator

,

10KVA SDEC generator set

,

open type diesel power generator
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: SDEC
Orzecznictwo: CE
Numer modelu: 3Z1.1-G42
Zapłata
Szczegóły pakowania: Sklejka
Czas dostawy: 30 dni
Możliwość Supply: 500PCS miesięcznie
opis produktu

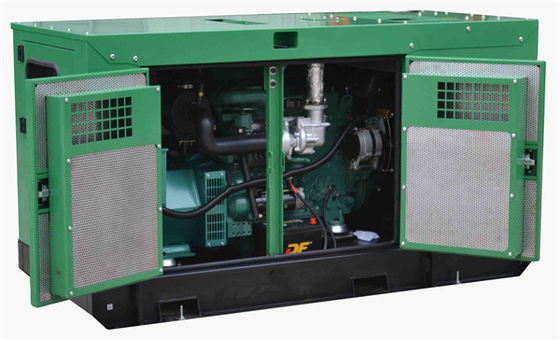

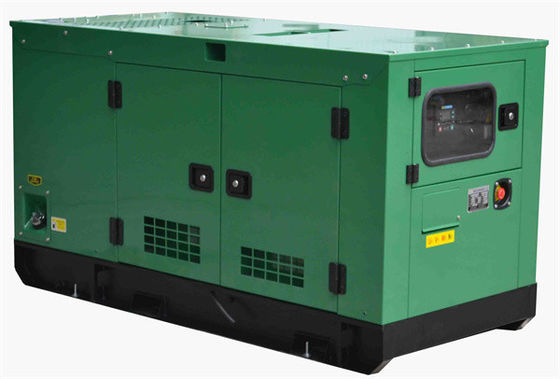

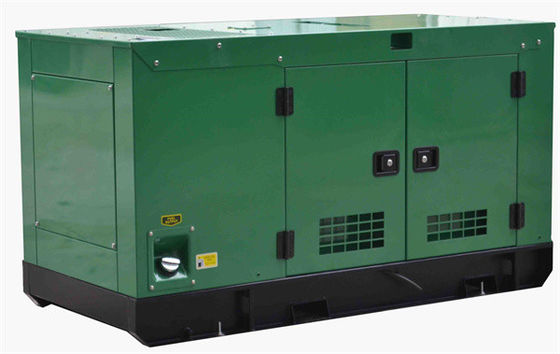

8kW 10KVA SDEC Generator Silent Open Type Diesel Generator Set
Our 8kW 10KVA BOBIG SDEC diesel generator (Model: 3Z1.1-G42) is designed to provide reliable power for a wide range of applications. Backed by the SDEC brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 8kW (10KVA) with stable and efficient prime power output, ensuring continuous operation even under heavy loads. Frequency: Standard 50Hz operation suitable for most electrical equipment.
Engine Excellence
Powered by the 3Z1.1-G42 SDEC engine with high torque, fuel efficiency, and low emissions. Engine Speed: 1500 RPM for smooth and consistent power supply.
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 10 11
Power Rating (kW) 8 9
Frequency (Hz) 50
Engine Model 3Z1.1-G42
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Details
Engine Model & Manufacturer 3Z1.1-G42 (SDEC)
Engine Type In-line, 4 strokes, water-cooled
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 3
Bore × Stroke 78 × 78.4 mm
Displacement 1.1 lit.
Compression Ratio 18:1
Firing Order 1-2-3
Fuel Injection Advance Angle Electronic control
Dry Weight 110 kg
Dimension 530x390x590mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164B
Alternator Rated Power 8kw/10kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Dimensions and Weight
Model BSD11 (Open type) BSD11S (Silent type)
Length (L) mm 1250 1900
Width (W) mm 610 850
Height (H) mm 940 1100
Tank Capacity (L) 18 18
Applications
This diesel generator is ideal for a variety of applications:
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Company Information
We are an electrical machinery manufacturer specializing in technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees, we produce gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and more.
Manufacturing Excellence
8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 0 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 1 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 2 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 3 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 4 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 5 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 6 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 7 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 8 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 9 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 10 8kW 10KVA SDEC Generator Silent Open Type diesel Generator Set Good Quality Low Price diesel Power Generator Factory Direct 11
Warranty and Services
BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). Our professional after-sales service team provides 24/7 technical support, maintenance, and repair services.
Frequently Asked Questions
Ordering and Payment
Q: What is your MOQ, payment method, delivery time?
A: MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit receipt.
Customization
Q: Can voltage, frequency, tank capacity, phase and color be customized?
A: Yes, all specifications can be customized according to your requirements.
