Telecom Base Station SDEC 6ETAA11.8-G21 Backup Genset 280kW 350kVA

1
MOQ
USD 300-860
Cena £
Telecom Base Station SDEC 6ETAA11.8-G21 Backup Genset 280kW 350kVA
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Podkreślić:

SDEC diesel generator 280kW

,

Telecom backup genset 350kVA

,

SDEC 6ETAA11.8-G21 generator
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: SDEC
Numer modelu: 6ETAA11.8-G21
Zapłata
Szczegóły pakowania: 420*140*212cm
Czas dostawy: 30 dni roboczych
Zasady płatności: L/C, T/T, D/P
Możliwość Supply: 500PCS miesięcznie
opis produktu
Telecom Base Station SDEC 6ETAA11.8-G21 Backup Genset 280kW 350kVA

SDEC Diesel Generator Set

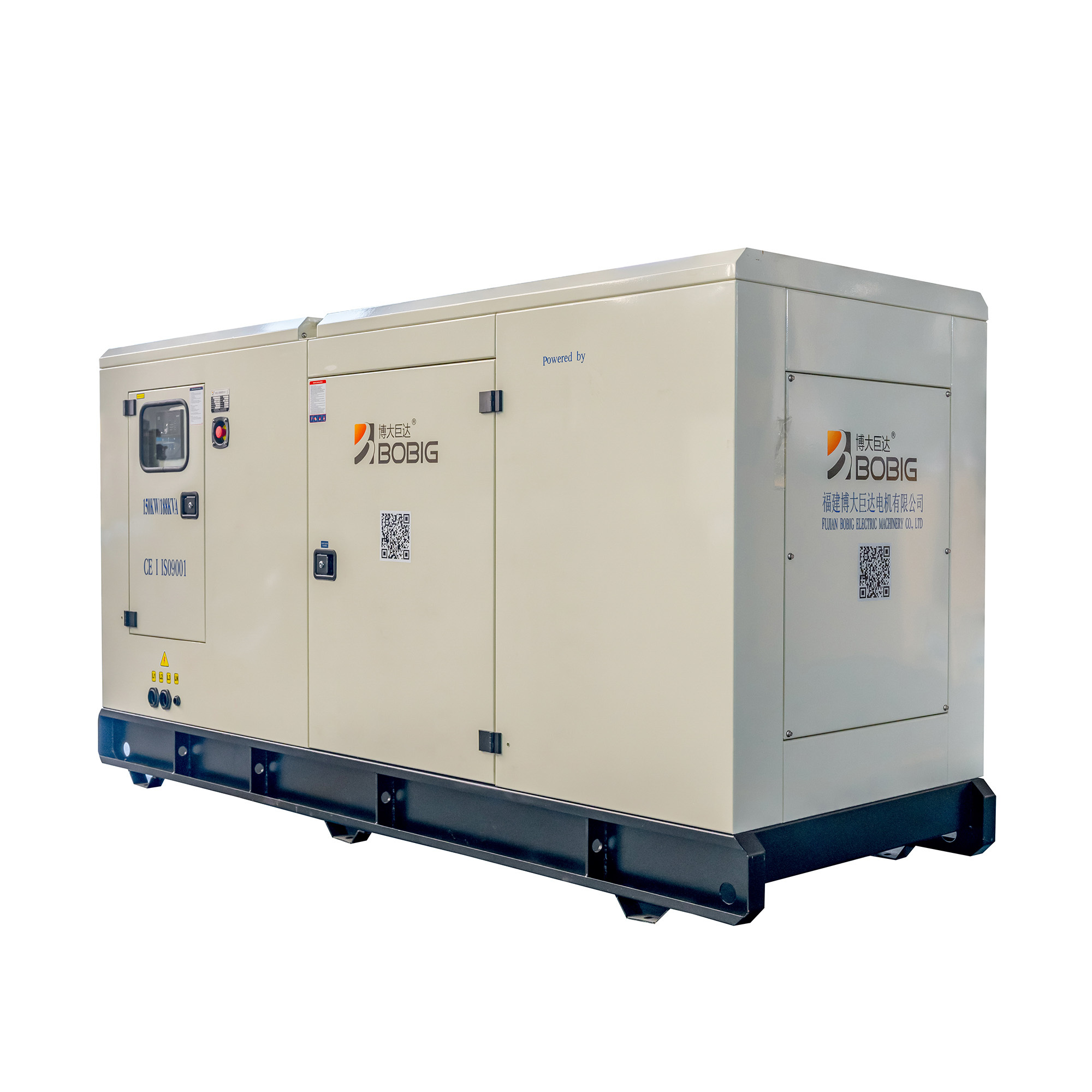

Our SDEC 6ETAA11.8-G21 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 280kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

Telecom Base Station SDEC 6ETAA11.8-G21 Backup Genset 280kW 350kVA 0 Telecom Base Station SDEC 6ETAA11.8-G21 Backup Genset 280kW 350kVA 1
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 350 385
Power Rating (kW) 280 308
Frequency (Hz) 50
Engine Model 6ETAA11.8-G21
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BSD385 (Open Type) BSD385S (Silent Type)
Length (L) mm 3100 4200
Width (W) mm 1050 1400
Height (H) mm 2100 2120
Tank Capacity (L) 644 644
Engine Specifications
Engine Model & Manufacturer 6ETAA11.8-G21 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 128 × 153mm
Displacement 11.8 lit.
Compression Ratio 17 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle 14.5°BTDC
Dry Weight 1164 kg
Dimension 1787 × 918 × 1304mm
Rotation CCW viewed from flywheel
Fly Wheel Housing SAE 1#
Fly Wheel SAE 14# (number of teeth: 133)
Injection Pump Longkou in-line "P" type
Governor Electric type
Feed Pump Mechanical type
Injection Nozzle Multi hole type
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314ES
Alternator Rated Power 280kW/350kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Telecom Base Station SDEC 6ETAA11.8-G21 Backup Genset 280kW 350kVA 2

Auto Start and Auto Mains Failure Control Module (Alternator frequency & CAN speed sensing)

Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
Alternator
  • PMG excitation
  • Space heater
  • Winding temperature measuring
Fuel System
  • 12 / 24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
Generating Set
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine
Telecom Base Station SDEC 6ETAA11.8-G21 Backup Genset 280kW 350kVA 3
