Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator

Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
daszek: Dostosowane
Gwarancja: 12 miesięcy/1000 godzin
Typ: Cichy (super cichy) lub otwarty, cichy itp., rzędowy / 6-cylindrowy / 4-suwowy / 4-zaworowy / 19 l,
Panel sterowania: Cyfrowy wyświetlacz LCD, głębinowe, ComAp, głębinowe / ComAp / Harsen / Smartgen 6110, Smartgen
Typ wyjścia: AC jedno-/trójfazowy
Kontroler: Deepsea/Smartgen/itp
Aplikacja: Indursty Bank itp
Napięcie znamionowe: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternator: Maraton, Stamford, SLG/Stamford/Maraton/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Nazwa produktu: Generator diesla, generator 400 kVA, zasilany generatorem diesla ISUZU, generator diesla w trybie go
Kolor: Wymagania klientów
Częstotliwość: 50/60 Hz
Moc znamionowa: 400KVA
Silnik: Oryginalny Doosan
metoda chłodzenia: Układ chłodzenia wodą
Podkreślić:

Doosan silent diesel generator 320kW

,

water-cooled silent diesel generator set

,

low noise 400kVA diesel generator
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Doosan
Orzecznictwo: CE
Numer modelu: P158LE
Zapłata
Szczegóły pakowania: Opakowanie bąbelkowe
Czas dostawy: 30 dni
Możliwość Supply: 3000 zestawów/miesiąc
opis produktu

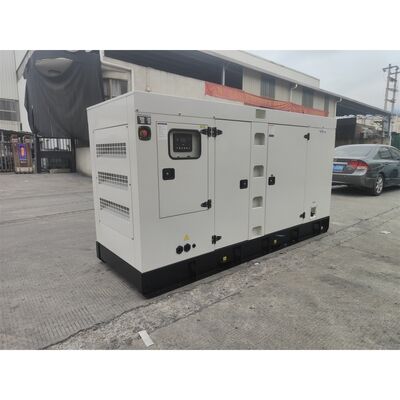

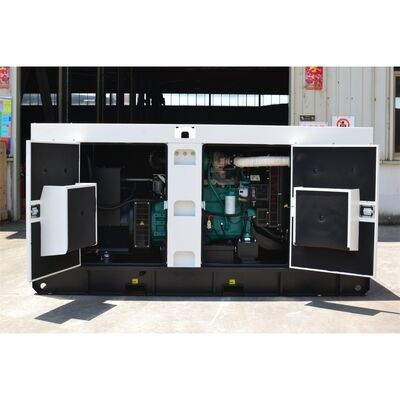

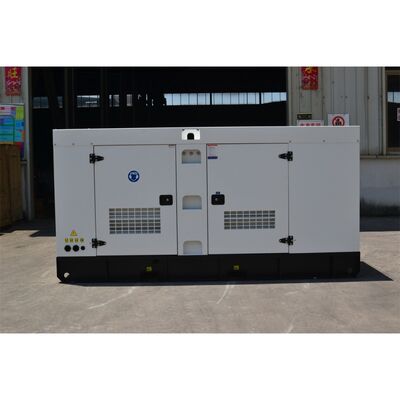

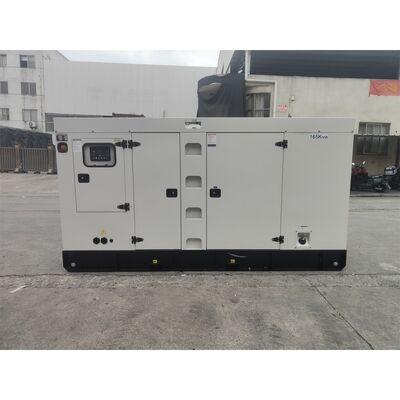

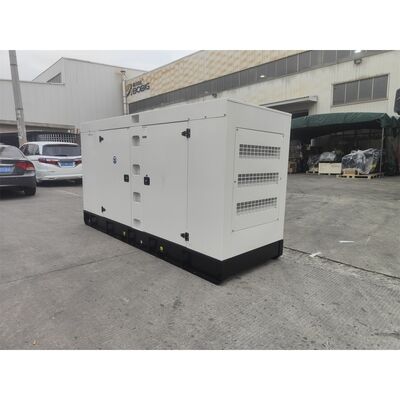

Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA
Water-cooling Power Diesel Generator - Model: P158LE
Product Overview
Our 320kW 400KVA BOBIG Doosan diesel generator (Model: P158LE) is engineered to deliver reliable power for diverse industrial, commercial, and residential applications. Backed by the renowned Doosan brand, it combines high-quality performance with long-term durability.
Key Features
Power Performance
Rated at 320kW (400KVA) with stable prime power output and 50Hz frequency, suitable for most electrical equipment.
Engine Excellence
Powered by the P158LE Doosan engine with 1500 RPM operation, delivering high torque, fuel efficiency, and low emissions.
Environmental Adaptability
Operates effectively in ambient temperatures from +5°C to +40°C and at altitudes up to 1000m.
Compliance Standards
Certified to ISO 8528-5:2018, GB/T2820.5-2009, and CE standards for quality, safety, and reliability.
Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 400 440
Power Rating (kW) 320 352
Frequency (Hz) 50
Engine Model P158LE
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BDO440 (Open Type) BDO440S (Silent Type)
Length (mm) 3100 4050
Width (mm) 1050 1510
Height (mm) 2150 2050
Tank Capacity (L) 736 736
Engine Details
Engine Model & Manufacturer P158LE (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 128 × 142mm
Displacement 14.62 liters
Cylinders and Arrangement Cast iron, 8 cylinder, Vee-Type
Battery Charging Alternator 28.5V x 45A alternator
Starting Voltage 24V
Fuel System Mechanical Injection Pump
Fuel Filter Full flow, cartridge type with water drain valve
Lube Oil Filter Type Full flow, cartridge type
Lube Oil Capacity Max. 21 liters, Min. 17 liters
Flywheel Dimensions Clutch No. 14 M
Dry Weight 950kg (engine only)
Dimension (LxWxH) 1389 × 1389 × 1216 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314FS
Alternator Rated Power 320kw/400kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Customization & Options
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.
Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator 0
Packaging & Shipping
Packed in plywood cases. Delivery within 10-15 working days after receiving customer deposit.
Certifications
Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator 1 Durable Quiet Shell Doosan Low Noise Silent Diesel Generator Set 320kW 400KVA Water-cooling Power Diesel Generator 2
Applications
  • Industrial Use: Backup power for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products carry a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we offer cost-based spare parts maintenance with 24/7 technical support.
Why Choose BOBIG
  • Brand Reputation: Partnership with Doosan, a trusted name in diesel generator industry
  • Quality Assurance: Manufactured to international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on specific customer requirements
