High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling

1ZESTAW
MOQ
3129-3583USD
Cena £
High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Prędkość: 1500 obr./min
Częstotliwość: 50/60 Hz
Moc znamionowa: 5 kW do 2000 kW
Typ wyjścia: AC Trójfazowy
Typ: Otwarty lub cichy (super cichy)
Kolor: Na Twoje wymagania, dostosowane
Podkreślić:

Silent diesel generator 72KW water cooling

,

Open type diesel generator 90KVA

,

Yunnei diesel generator with warranty
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: QUANCHAI
Numer modelu: YN48ECD90
Zapłata
Szczegóły pakowania: sklejka
Czas dostawy: 40 dni roboczych
Zasady płatności: Akredytywa, T/T
Możliwość Supply: 50 zestawów miesięcznie
opis produktu
High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling
High quality water cooling QUANCHAI diesel generator available in both open and silent configurations to meet diverse operational requirements. This reliable power supply unit delivers consistent performance for various applications.
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information
General Information Prime Power Standby Power
Rated Power (kVA) 90 99
Power Rating (kW) 72 79
Frequency (Hz) 50
Engine Model YN48ECD90
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Dimension and Weight Open Type (BYN99) Silent Type (BYN99S)
Length (L) mm 2050 2750
Width (W) mm 800 1000
Height (H) mm 1750 1350
Tank Capacity (L) 166 166
Engine Specifications
Engine Model & Manufacturer YN48ECD90 (YUNNEI)
Engine Model YN48ECD90
Engine Rated Speed (rpm) 1500
Generator Set Frequency (Hz) 50
Engine Prime Power (PRP) (kW) 90
Length (L) mm 1130
Width (W) mm 730
Height (H) mm 960
Engine Dry Weight w/o Cooling System (kg) 500
Aspiration Type Turb. & Intercooler
Injection Type Direct
Configuration Vertical
No. of Cylinders 4
Displacement (liters) 4.8
Bore (mm) 108
Stroke (mm) 132
Compression Ratio 16.5
Piston Speed (m/s) 7.92
Rotation Direction (from flywheel) Anti-clockwise
Number of Flywheel Teeth 130
Flywheel House Size SAE3
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274C
Alternator Rated Power 72kw/90kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Standard Components
  • Heavy duty diesel engine
  • Starter battery (with lead acid) including rack and cables
  • Anti-vibration mount
  • Flexible fuel connection hoses
  • Replaceable fuel filter, oil filter & air filter
  • Exhaust silencer and bellows
  • Cooling radiator and fan
  • Operation manuals and circuit diagram documents
Product Images

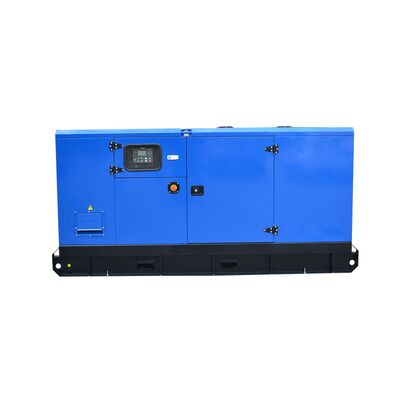

High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 0
Front View

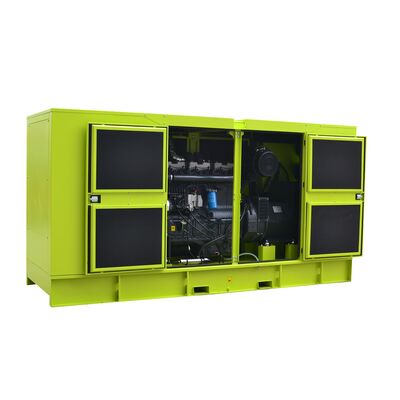

High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 1
Side View

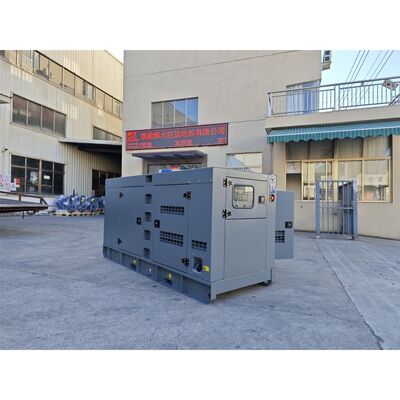

High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 2
Control Panel

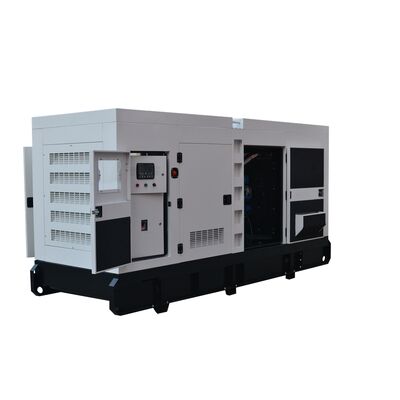

High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 3
Engine Detail

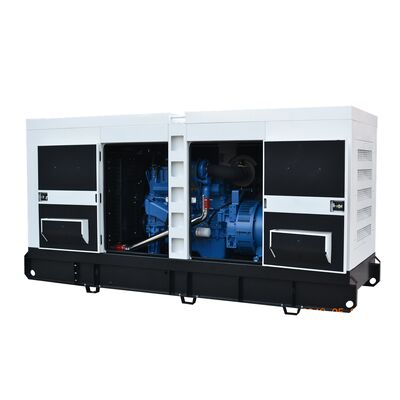

High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 4
Alternator View

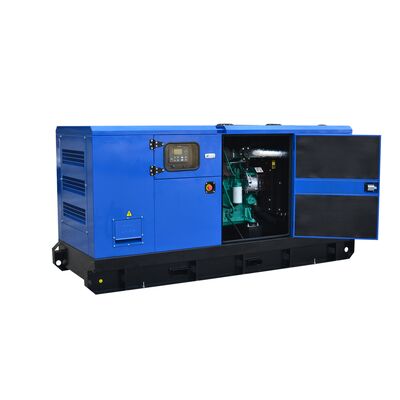

High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 5
Silent Type Exterior

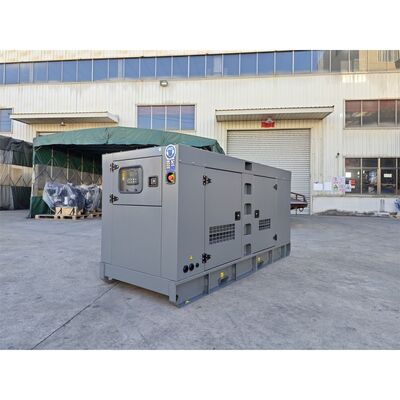

High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 6
Internal Components

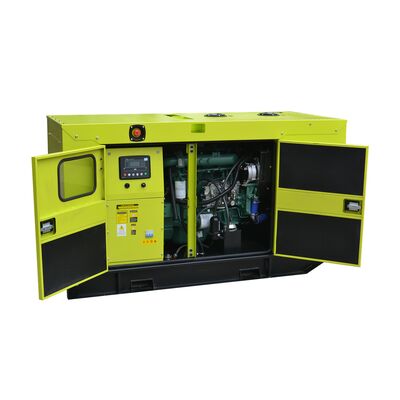

High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 7
Cooling System
High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 8
Fuel System
High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 9
Electrical Connections
High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 10
Full Assembly
High Quality Open/Silent Type Yunnei Diesel Generator 72KW/90KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
