Name: 36KW Silent Diesel Generator Set 110V DC Output Powerful and Super Quiet 36KW/40KW
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: YANGDONG Y4102ZD
Price: 3,750.00 USD
Availability: InStock

cechy Galeria opis produktu Poprosić o wycenę

cechy

specyfikacje

Podkreślić:

36KW silent diesel generator

110V DC diesel generator

super quiet 40KW generator

Podstawowe informacje

Miejsce pochodzenia: Chiny

Nazwa handlowa: YANGDONG

Numer modelu: YANGDONG Y4102ZD

Zapłata

Szczegóły pakowania: 225*88*115cm

Czas dostawy: 30 dni roboczych

Zasady płatności: L/C, T/T, D/P

Możliwość Supply: 500 sztuk miesięcznie

Galeria

36KW Silent Diesel Generator Set 110V DC Output Powerful and Super Quiet 36KW/40KW

opis produktu

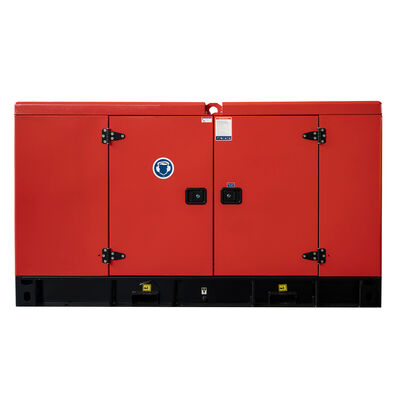

36KW Silent Diesel Generator Set - 110V DC Output Powerful and Super Quiet 36KW/40KW

Our YANGDONG Y4102ZD Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 36kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

Power Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	45	50
Power Rating (kW)	36	40
Frequency (Hz)	50
Engine Model	Y4102ZD
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BY50 (Open Type)	BY50S (Silent Type)
Length (L) mm	1800	2350
Width (W) mm	710	880
Height (H) mm	1170	1150
Tank Capacity (L)	83	83

Engine Specifications

Engine Model & Manufacturer	Y4102ZD (YANGDONG)
No. of Cylinders	4
Injection Type	Direct
Aspiration	Natural
Configuration	Vertical
Bore	102 mm
Stroke	118 mm
Compression Ratio	18
Displacement	3.86 L
Dry Engine Weight	408 kg
Dimension (LWH)	867616722
The Flywheel Shell Interface	SAE3
Governed Engine Speed	1500
Continuous Power without Fans	40
Standby Power	44

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-224C
Alternator Rated Power	36kw/45kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & can speed sensing)

Key Benefits

Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
Hours counter provides accurate information for monitoring and maintenance periods
User-friendly set-up and button layout for ease of use
Multiple parameters are monitored & displayed simultaneously for full visibility
The module can be configured to suit a wide range of applications for user flexibility
PLC editor allows user configurable functions to meet user specific application requirements

Key Features

4-line back-lit LCD text display
Multiple display languages
Five-key menu navigation
LCD alarm indication
Customisable power-up text and screen images
DSENet® expansion compatibility
Data logging facility
Internal PLC editor
Protections disable feature
Fully configurable via PC using USB communications
Front panel configuration with PIN protection
Power save mode
3-phase generator sensing and protection
3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
Automatic load transfer control (DSE6120 MKIII only)
Generator current and power monitoring (kW, kvar, kVA, pf)
Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
kW overload alarm
Over current protection
Breaker control via fascia buttons
Fuel and start outputs configurable when using CAN
6 configurable DC outputs
4 configurable analogue/digital inputs
Support for 0 V to 10 V & 4 mA to 20 mA sensors
8 configurable digital inputs
CAN, MPU and alternator frequency speed sensing in one variant
Real time clock
Manual and automatic fuel pump control
Engine pre-heat and post-heat functions
Engine run-time scheduler
Engine idle control for starting & stopping
Fuel level alarms
3 configurable maintenance alarms
Compatible with a wide range of CAN engines, including Tier 4 engine support
Uses DSE Configuration Suite PC Software for simplified configuration
Licence-free PC software
IP65 rating (with optional gasket) offers increased resistance to water ingress
Configurable CAN read & transmitted information
1 alternative configuration

Options

Engine	Alternator	Fuel System	Generating Set
Water Jacket Preheater	PMG excitation	12 / 24 hour base tank	Deepsea, ComAp, Smartgen etc. controller
Oil Preheater	Space heater	Bunded fuel tank	Trailer
Oil manual pump	Winding temperature measuring	External fuel tank	Tools with the machine
		Automatic fuel feeding
		Switch between external tank and base tank (three-way valve)
