YANGDONG YD385D 10kW 13kVA Silent Diesel Genset 3 Phase

1
MOQ
USD 500-1860
Cena £
YANGDONG YD385D 10kW 13kVA Silent Diesel Genset 3 Phase
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Podkreślić:

10kW silent diesel generator

,

13kVA 3 phase genset

,

silent diesel genset with warranty
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: YANGDONG
Numer modelu: Yangdong YD385D
Zapłata
Szczegóły pakowania: 175*85*103cm
Czas dostawy: 30 dni roboczych
Zasady płatności: L/C, T/T, D/P
Możliwość Supply: 500PCS miesięcznie
opis produktu
YANGDONG YD385D 10kW 13kVA Silent Diesel Genset 3 Phase
Our YANGDONG YD385D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 10kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

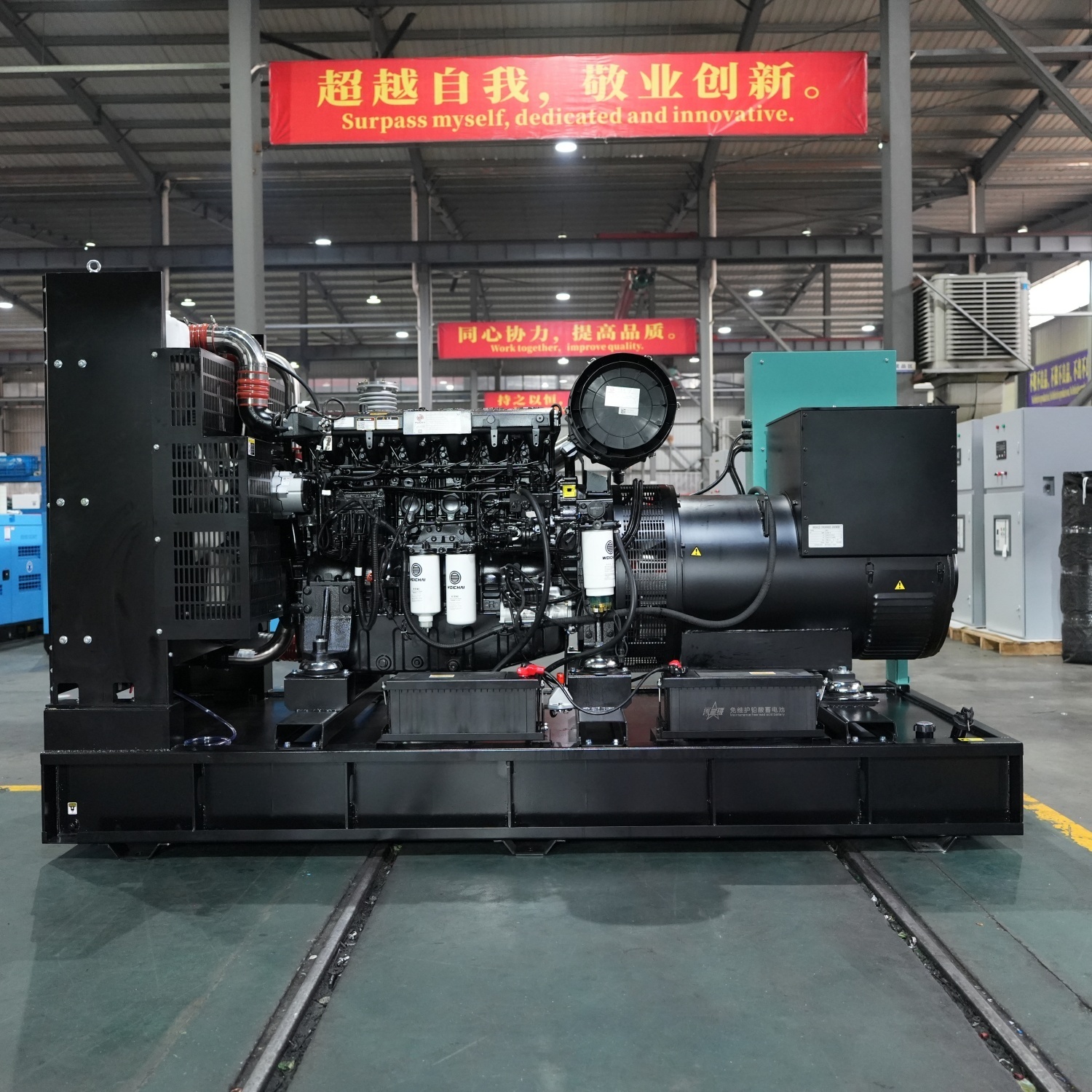

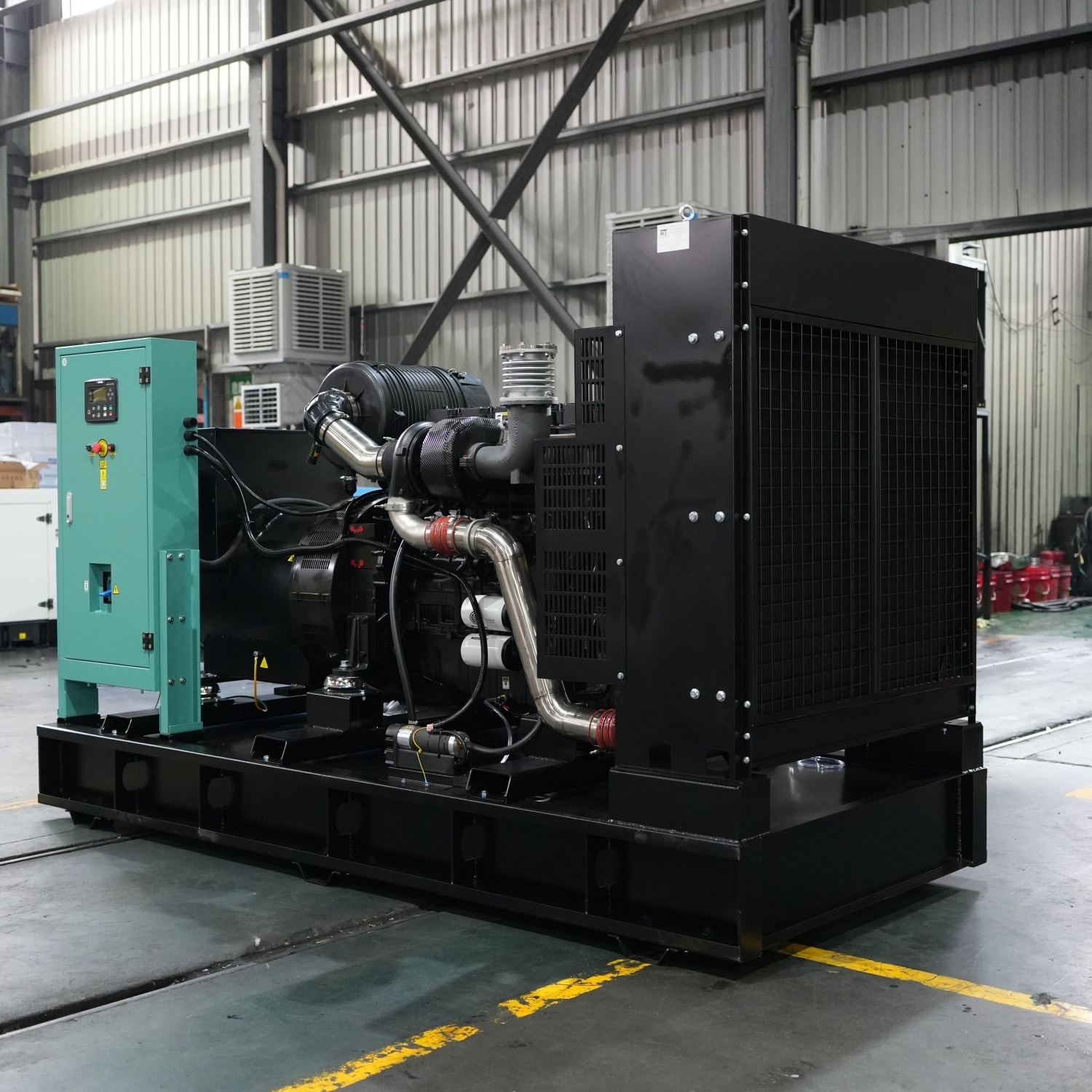

YANGDONG YD385D 10kW 13kVA Silent Diesel Genset 3 Phase 0YANGDONG YD385D 10kW 13kVA Silent Diesel Genset 3 Phase 1
General Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)1314
Power Rating (kW)1011
Frequency (Hz)50
Engine ModelYD385D
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
Power Rating Definitions
PRP (Prime Power) - Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP (Standby Power) - Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
ModelBY14 (Open Type)BY14S (Silent Type)
Length (L) mm11501750
Width (W) mm610850
Height (H) mm11001030
Tank Capacity (L)2323
Engine Specifications
Engine Model & ManufacturerYD385D (YANGDONG)
Number of Cylinders3
Injection TypeDirect
AspirationNatural
ConfigurationVertical
Bore85 mm
Stroke90 mm
Compression Ratio18
Displacement1.532 L
Dry Engine Weight175 kg
Dimension (L×W×H)587×474×615 mm
The Flywheel Shell InterfaceSAE4
Governed Engine Speed1500 RPM
Continuous Power without Fans11 kW
Standby Power12 kW
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-164C
Alternator Rated Power10kW/13kVA
Rated Voltage (V)230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 Wire
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%～+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & can speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration

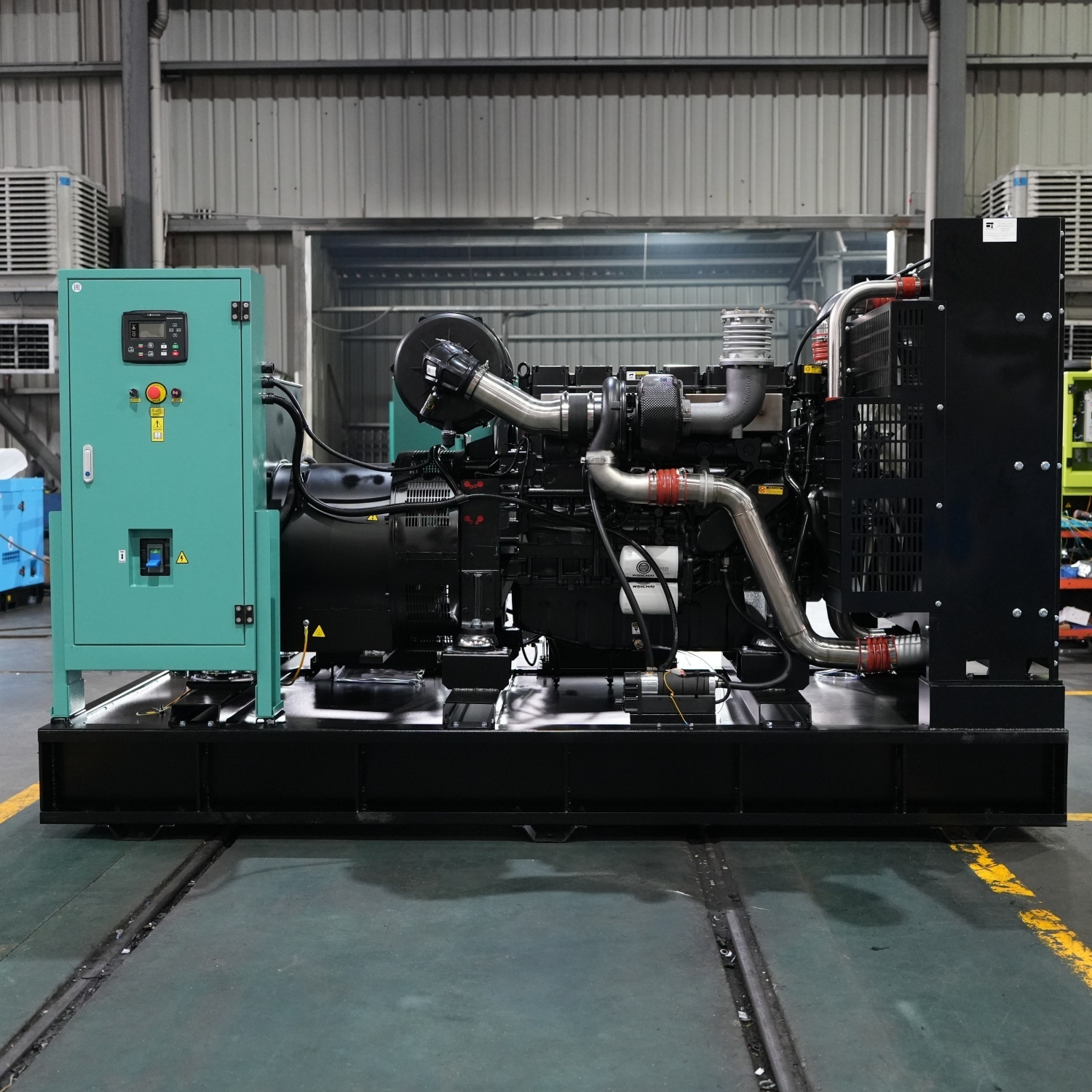

YANGDONG YD385D 10kW 13kVA Silent Diesel Genset 3 Phase 2
Available Options
Engine
  • Water Jacket Preheater
  • Oil Preheater
  • Oil Manual Pump
Alternator
  • PMG Excitation
  • Space Heater
  • Winding Temperature Measuring
Fuel System
  • 12 / 24 Hour Base Tank
  • Bunded Fuel Tank
  • External Fuel Tank
  • Automatic Fuel Feeding
  • Switch Between External Tank and Base Tank (Three-way Valve)
Generating Set
  • Deepsea, ComAp, Smartgen etc. Controller
  • Trailer
  • Tools with the Machine

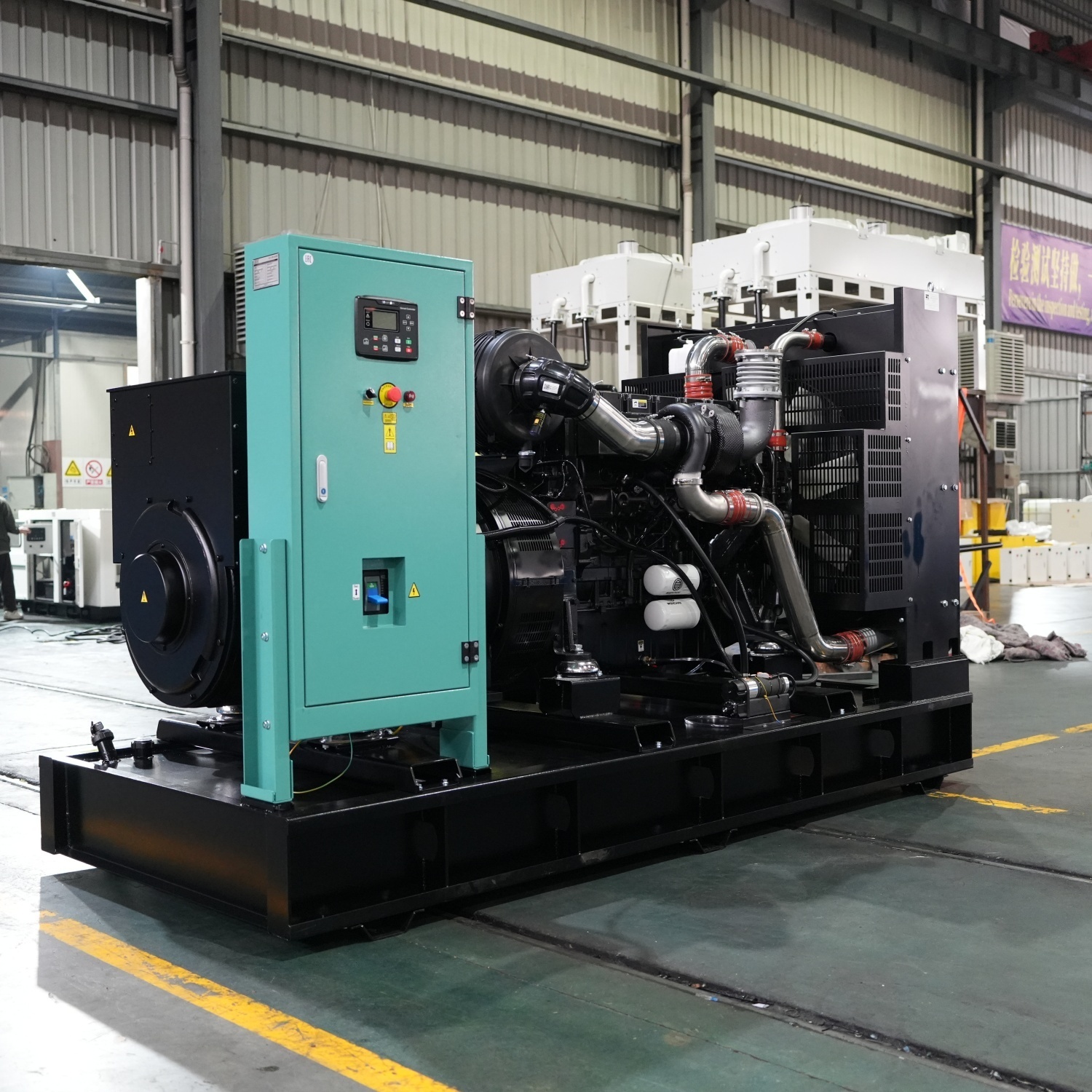

YANGDONG YD385D 10kW 13kVA Silent Diesel Genset 3 Phase 3YANGDONG YD385D 10kW 13kVA Silent Diesel Genset 3 Phase 4
