100kva 80kw SDEC Diesel Generators 100kw 150 Kva Power Generator Diesel 100 Kva 60kw 3phase Generator 80 kw

1
MOQ
5400-7900USD
Cena £
100kva 80kw SDEC Diesel Generators 100kw 150 Kva Power Generator Diesel 100 Kva 60kw 3phase Generator 80 kw
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Podkreślić:

100kva SDEC diesel generator

,

80kw 3phase power generator

,

150 kva diesel generator with warranty
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: SDEC
Orzecznictwo: ISO 9001
Numer modelu: 4HTAA4.3-G21
Zapłata
Szczegóły pakowania: 265*104*184cm
Czas dostawy: 30 dni roboczych
Możliwość Supply: 500 sztuk miesięcznie
opis produktu
SDEC 4HTAA4.3-G21 Diesel Generator Set
Our SDEC 4HTAA4.3-G21 Diesel Generator is a high-performance, heavy-duty generator set designed for reliable prime and standby power applications. Engineered with the renowned SDEC engine, this 80kW unit features a robust soundproof canopy, making it ideal for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup use.

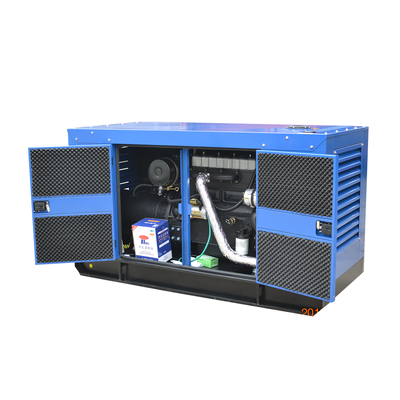

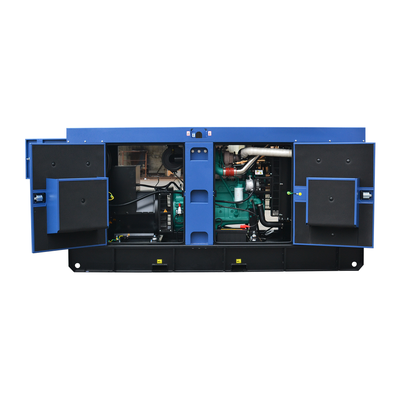

SDEC 4HTAA4.3-G21 Diesel Generator exterior view SDEC 4HTAA4.3-G21 Diesel Generator internal components
Power Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)100110
Power Rating (kW)8088
Frequency (Hz)50
Engine Model4HTAA4.3-G21
Engine Speed (RPM)1500
Phase3
Power Factor (PF)0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity Operating Time≥ 8 hours @ 75% load
PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
ModelBSD110 (Open Type)BSD110S (Silent Type)
Length (L) mm22002650
Width (W) mm8001040
Height (H) mm15001400
Tank Capacity (L)184184
Engine Specifications
Engine Model & Manufacturer4HTAA4.3-G21 (SDEC)
Engine TypeIn-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion TypeDirect injection
Cylinder TypeDry liner
Number of Cylinders4
Bore × Stroke105 × 124 mm
Displacement4.3 lit.
Compression Ratio16 : 1
Firing Order1-3-4-2
Fuel Injection Advance Angle10° BTDC
Dry Weight450 kg
Dimension1080 × 738 × 1078 mm
RotationCCW viewed from flywheel
Fly Wheel HousingSAE 3#
Fly WheelSAE 11.5# (127 teeth)
Injection PumpLongkou in-line "P" type
GovernorElectric type
Feed PumpMechanical type
Injection NozzleMulti hole type
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-274C
Alternator Rated Power80kW / 100kVA
Rated Voltage (V)230V / 400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 Wire
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15% ~ +20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Key Benefits
  • Automatic transfer between mains (utility) and generator
  • Hours counter for accurate monitoring and maintenance
  • User-friendly set-up and button layout
  • Multiple parameters monitored & displayed simultaneously
  • Configurable for wide range of applications
  • PLC editor for user configurable functions
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • 3-phase generator and mains sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Real time clock and engine run-time scheduler
DSE 6120 Control Panel display and interface
Available Options
EngineAlternatorFuel SystemGenerating Set
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
  • PMG excitation
  • Space heater
  • Winding temperature measuring
  • 12 / 24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank
  • Deepsea, ComAp, Smartgen controllers
  • Trailer
  • Tools with the machine

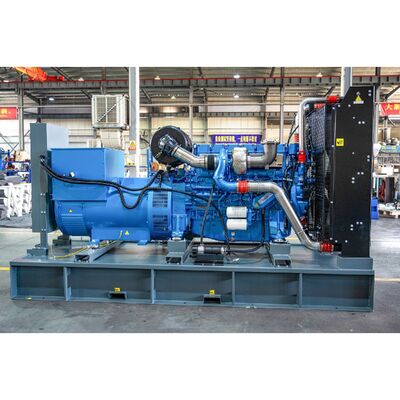

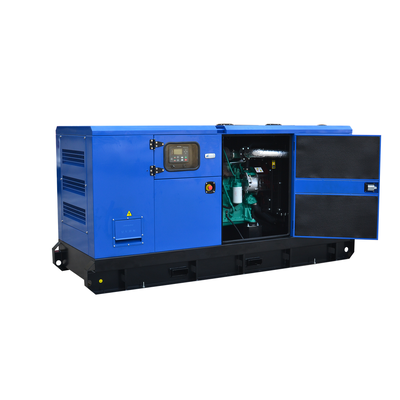

SDEC Diesel Generator operational view SDEC Diesel Generator installation view
