280kw Diesel Generator Super Silent 350kVA 3 Phase 50Hz ATS Stamford Alternator ISO CE Certified Silent

1
MOQ
USD 4500-7200
Cena £
280kw Diesel Generator Super Silent 350kVA 3 Phase 50Hz ATS Stamford Alternator ISO CE Certified Silent
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Podkreślić:

280kw silent diesel generator

,

350kVA 3 phase diesel generator

,

ATS Stamford alternator generator
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: YTO
Numer modelu: YM6S9L-DB
Zapłata
Szczegóły pakowania: 386*140*200cm
Czas dostawy: 30 dni roboczych
Zasady płatności: L/C, T/T, D/P
Możliwość Supply: 500 sztuk miesięcznie
opis produktu
280kW Diesel Generator - Super Silent 350kVA 3 Phase 50Hz
Our YTO YM6S9L-DB Diesel Generator is a high-performance, heavy-duty generator set designed for reliable prime and standby power applications. Engineered with the renowned YTO engine, this 280kW unit features a robust soundproof canopy, making it ideal for applications requiring low noise operation without compromising power and durability. Perfect for construction, industrial, commercial, and emergency backup use.

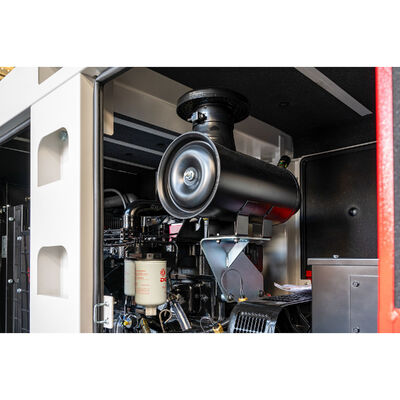

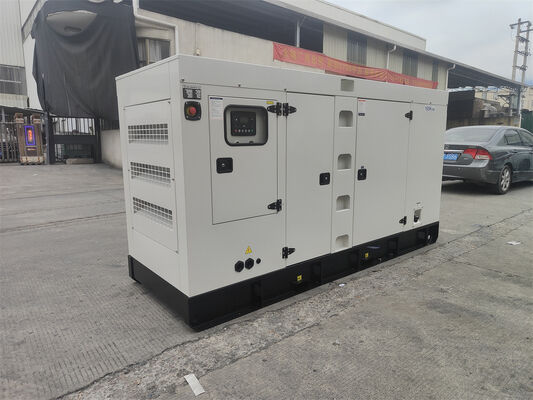

280kw Diesel Generator Super Silent 350kVA 3 Phase 50Hz ATS Stamford Alternator ISO CE Certified Silent 0 280kw Diesel Generator Super Silent 350kVA 3 Phase 50Hz ATS Stamford Alternator ISO CE Certified Silent 1
Power Specifications
ParameterPrime PowerStandby Power
Rated Power (kVA)350385
Power Rating (kW)280308
Frequency (Hz)50
Engine ModelYM6S9L-DB
Engine Speed (RPM)1500
Phase3
Power Factor (PF)0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity Operating Time≥ 8 hours @ 75% load
PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97; includes 10% overload capability for 1 hour within 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
ModelBYT385 (Open Type)BYT385S (Silent Type)
Length (mm)31003860
Width (mm)10501400
Height (mm)21002000
Tank Capacity (L)644644
Engine Specifications
Engine Model & ManufacturerYM6S9L-DB (YTO)
Number of Cylinders6
Cylinder ArrangementIn-line
Cycle4 stroke, compression ignition
Air Aspiration MethodTurbocharged with air to air cooler
Cooling MediumLiquid
Bore126 mm
Stroke155 mm
Compression Ratio17.0:1
Cubic Capacity11.596 L
Dry Engine Weight1100 kg
Dimensions (L×W×H)1229×1813×965 mm
Rotation DirectionAnti-clockwise viewed on flywheel
Governed Engine Speed1500 RPM
Firing Order1-5-3-6-2-4 (1 cylinder furthest from flywheel)
Standby Power344 kW
Adaptive Power Station310 kW
Steady State Speed Stability≤ 3%
Alternator Specifications
Alternator BrandBOBIG
ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-314ES
Rated Power280kW / 350kVA
Rated Voltage230V / 400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 Wire
Number of Bearings1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Specific Fuel Consumption≤ 205g/kW·h
Transient State Voltage≤-15% ~ +20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Key Benefits
  • Automatic transfer between mains (utility) and generator
  • Hours counter for accurate monitoring and maintenance
  • User-friendly set-up and button layout
  • Multiple parameters monitored & displayed simultaneously
  • Configurable for wide range of applications
  • PLC editor for user configurable functions
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • 3-phase generator sensing and protection
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Real time clock and engine run-time scheduler
  • IP65 rating (with optional gasket)

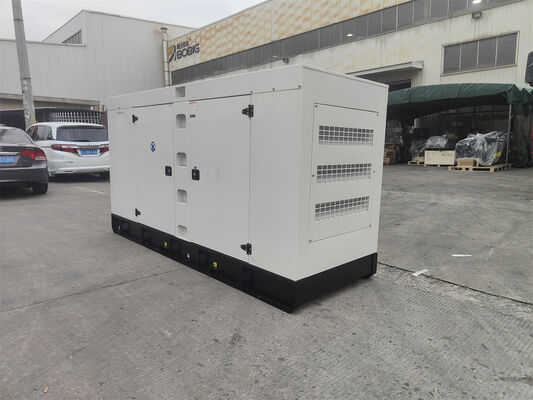

280kw Diesel Generator Super Silent 350kVA 3 Phase 50Hz ATS Stamford Alternator ISO CE Certified Silent 2
Available Options
EngineAlternatorFuel SystemGenerating Set
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
  • PMG excitation
  • Space heater
  • Winding temperature measuring
  • 12/24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank
  • Deepsea, ComAp, Smartgen controllers
  • Trailer
  • Tools with the machine

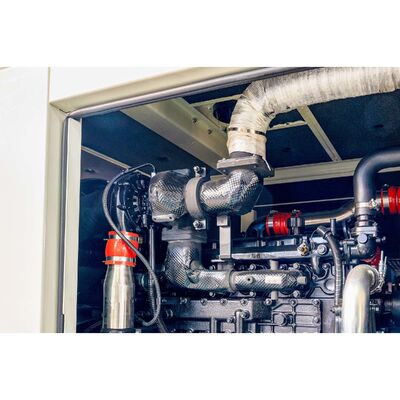

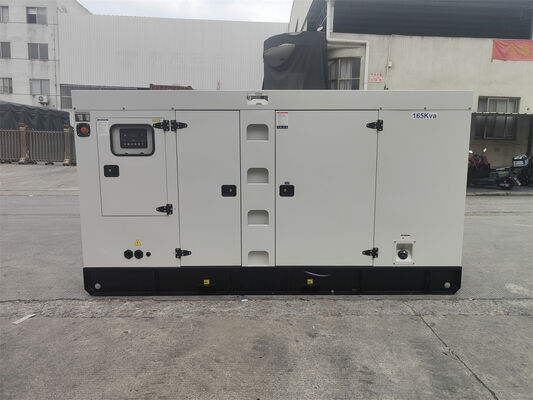

280kw Diesel Generator Super Silent 350kVA 3 Phase 50Hz ATS Stamford Alternator ISO CE Certified Silent 3 280kw Diesel Generator Super Silent 350kVA 3 Phase 50Hz ATS Stamford Alternator ISO CE Certified Silent 4 280kw Diesel Generator Super Silent 350kVA 3 Phase 50Hz ATS Stamford Alternator ISO CE Certified Silent 5
Certifications: ISO CE Certified
