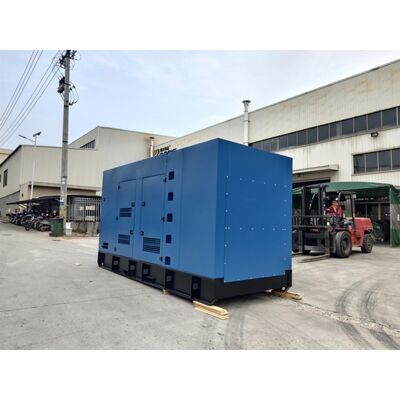

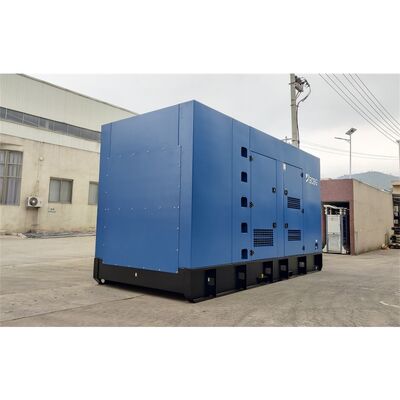

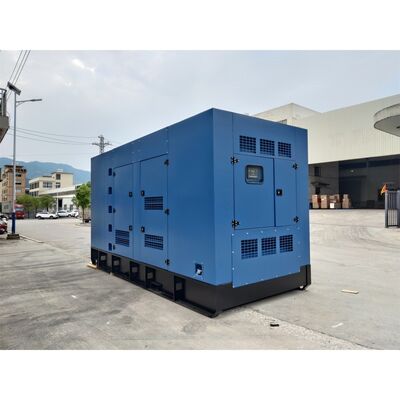

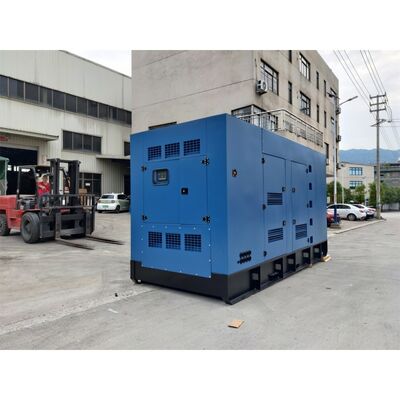

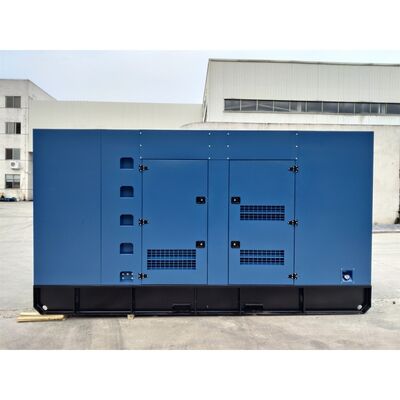

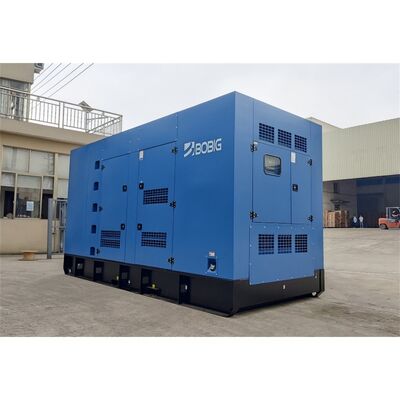

Heavy Duty 1500kW 1875kVA Containerized Silent Generator Set
Cummins Powered, 3-Phase 50/60Hz, OEM Customization Available
Product Overview
Our 1500kW 1875KVA BOBIG Cummins diesel generator (Model: KTA50-G16B) provides reliable power for industrial, commercial, and residential applications. Backed by the renowned Cummins brand, it delivers high-quality performance and long-term durability.
Key Features
Power Performance
Rated at 1500kW (1875KVA), this generator meets demanding power requirements with stable, efficient prime power output for continuous operation under heavy loads. Operating at 50Hz standard frequency, it's compatible with most electrical equipment.
Engine Excellence
Powered by the KTA50-G16B Cummins engine, this generator combines advanced technology with high-quality manufacturing. The engine delivers high torque, fuel efficiency, and low emissions while running at 1500 RPM for smooth, consistent power supply.
Technical Specifications
General Information
| Parameter | Prime Power | Standby Power |
|---|
| Rated Power (kVA) | 1875 | 2063 |
| Power Rating (kW) | 1500 | 1650 |
| Frequency (Hz) | 50 |
| Engine Model | KTA50-G16B |
| Engine Speed (RPM) | 1500 |
| Phase | 3 |
| PF | 0.8 |
| Control System | Digital |
| Rated Voltage (V) | 400/230 (Customizable) |
| Fuel Tank Operating Time | ≥ 8h @ 75% load |
Dimensions and Weight
| Model Type | Open Type (BC2063) | Silent Type (BC2063S) |
|---|
| Length (mm) | 5600 | 6100 |
| Width (mm) | 2150 | 2250 |
| Height (mm) | 2550 | 3050 |
| Tank Capacity (L) | 3450 | 3450 |
Engine Specifications
| Engine Model & Manufacturer | KTA50-G16B (Cummins) |
| Number of Cylinders | 16 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged, LTA |
| Bore x Stroke | 159 x 159 mm |
| Displacement | 50.3 L |
| Compression Ratio | 14.7:1 |
| Prime Power/Speed | 1650 kW/1500 rpm |
| Standby Power/Speed | 1833 kW/1500 rpm |
| Fuel System | Cummins PT |
| Cooling System | Force Water Cooling Cycle |
| Frequency Droop | ≤ 5% |
| Lubrication System Capacity | 54 L |
| Coolant Capacity (Engine Only) | 37.0 L |
| Fuel Consumption @ 100% Load | 204 g/kWh @1500 rpm |
| Starter Motor | DC 24V |
| Charge Alternator | DC 24V |
Alternator Specifications
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-454E |
| Rated Power | 1500kW/1875kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 Wire |
| Number of Bearings | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
Certifications & Standards
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.
Customization & Options
We support full customization and OEM services with design drawings. All units feature original power supplies and standard DSE 6120 controller (engine, generator, and controller options available).
Applications
- Industrial Use: Backup power for factories ensuring continuous production during outages
- Commercial Buildings: Power for offices, shopping malls, and hotels maintaining essential services
- Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Our professional after-sales team offers 24/7 technical support, maintenance, and repair services.
Why Choose BOBIG
- Brand Reputation: Cummins engines are trusted worldwide for quality and reliability
- Quality Assurance: Strict adherence to international standards with rigorous quality inspections
- Customization Options: Tailored solutions based on specific customer requirements
Frequently Asked Questions
What is your MOQ, payment method, and delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as customer requested.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you supply parts when needed?
Yes, we can supply parts at any time (not limited to warranty period), typically shipped within 3-5 days.
Can you customize voltage, frequency, tank capacity, phase, and color?
Yes, all parameters can be customized according to customer requirements.
What is your distribution policy?
We welcome distributors worldwide and can provide authority certificates and signed agreements.
