400kW 500KVA Auto Start Diesel Generator Set 500kva for Sale With Super Silent Open Frame diesel Generator Cum min

400kW 500KVA Auto Start Diesel Generator Set 500kva for Sale With Super Silent Open Frame diesel Generator Cum min
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
daszek: Dostosowane
Gwarancja: 12 miesięcy/1000 godzin
typ: Cichy (super cichy) lub otwarty, cichy itp., rzędowy / 6-cylindrowy / 4-suwowy / 4-zaworowy / 19 l,
Panel sterowania: Cyfrowy wyświetlacz LCD, głębinowe, ComAp, głębinowe / ComAp / Harsen / Smartgen 6110, Smartgen
Typ wyjścia: AC jedno-/trójfazowy
Kontroler: Deepsea/Smartgen/itp
Aplikacja: Indursty Bank itp
Napięcie znamionowe: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternator: Maraton, Stamford, SLG/Stamford/Maraton/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Nazwa produktu: Generator diesla, generator 500 kVA, zasilany generatorem diesla CUMMIN S, generator diesla w trybie
Kolor: Wymagania klientów
Częstotliwość: 50/60 Hz
Moc znamionowa: 400 kW
Silnik: Oryginalna CUMMIN S
metoda chłodzenia: Układ chłodzenia wodą
Podkreślić:

400kW diesel generator set

,

500kva super silent generator

,

auto start cummins generator
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: CUMMIN S
Orzecznictwo: CE
Numer modelu: kta19-g3a
Zapłata
Szczegóły pakowania: Opakowanie bąbelkowe
Czas dostawy: 30 dni
Możliwość Supply: 500 sztuk miesięcznie
opis produktu
400kW 500KVA Auto Start Diesel Generator Set
Our 400kW 500KVA BOBIG CUMMIN S diesel generator (Model: QSZ13-G3) provides reliable power for industrial, commercial, and residential applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 400kW (500KVA) for various industrial, commercial, and residential applications
  • Prime power output is stable and efficient for continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: QSZ13-G3 CUMMIN S engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 500 550
Power Rating (kW) 400 440
Frequency (Hz) 50
Engine Model QSZ13-G3
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BC550 (Open Type) BC550S (Silent Type)
Length (mm) 3200 4300
Width (mm) 1400 1600
Height (mm) 2250 2430
Tank Capacity (L) 920 920
Engine Specifications
Engine Model & Manufacturer QSZ13-G3 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged & Charge Air Cooled
Bore x Stroke 130 x 163 mm
Displacement 13.0 L
Compression Ratio 17.0:1
Prime Power/Speed 450 kW/1500 rpm
Standby Power/Speed 500 kW/1500 rpm
Fuel System HPCR
Cooling System Force Water Cooling Cycle
Frequency Droop ≤ 1%
Total Lubrication System Capacity 23.1 L
Coolant Capacity (Engine Only) 13 L
Fuel Consumption @ 100% Load 193 g/kWh @1500 rpm
Starter Motor DC 24V
Charge Alternator DC 24V
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354D
Alternator Rated Power 400kW/500kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Environmental Adaptability
  • Ambient Temperature Range: +5°C to +40°C
  • Suitable for altitudes up to 1000m
  • Customized solutions available for different environmental conditions
Applications
This diesel generator is ideal for a variety of applications:
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for residential communities, especially in areas with unstable power grids
Customization & OEM Services
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.
Product Image

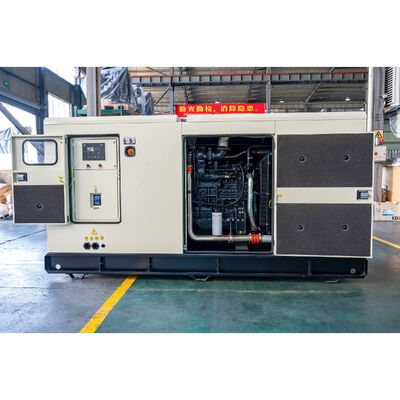

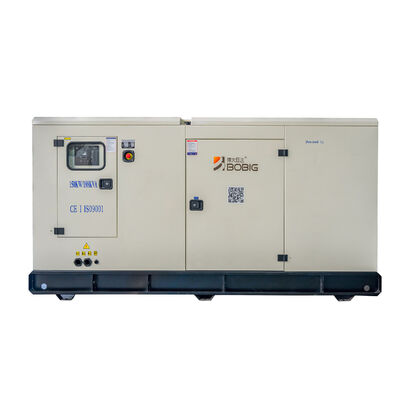

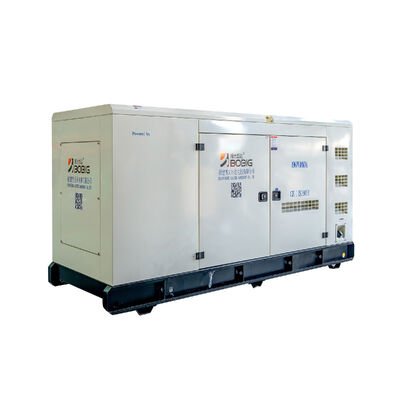

400kW 500KVA BOBIG CUMMIN S Diesel Generator Set
Certifications
Our generator complies with multiple international and national standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications.
Product Certification 1 Product Certification 2
Warranty and Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues. Our professional after-sales service team is available 24/7 for technical support, maintenance, and repair services.
Why Choose Us
  • Brand Reputation: Cummins is a well-known and trusted brand in the diesel generator industry
  • Quality Assurance: Products manufactured according to international standards with rigorous quality inspections
  • Customization Options: Customized solutions based on your specific requirements
