Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw

1
MOQ
USD+2545.28
Cena £
Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Moc znamionowa: 260 kW
Moc znamionowa: 325 kW
System sterowania: Cyfrowy
Pojemność zbiornika: 598L
Faza: 3
Częstotliwość: 50/60 Hz
obr./min: 1500/1800
typ: Cichy/otwarty
Alternator: Chiny Stamford,oryginalny Stamford, Leroy Somer
Pakiet: Sklejka, opakowanie z folii z tworzywa sztucznego
Podkreślić:

silent diesel generator 260kw

,

intelligent diesel generator 800kw

,

super silent diesel generator 1000kw
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Doosan
Orzecznictwo: CE
Numer modelu: DP126CA
Zapłata
Szczegóły pakowania: 310 cm * 105 cm * 215 cm
Czas dostawy: 20-30 dni roboczych
Zasady płatności: Akredytywa, T/T
opis produktu

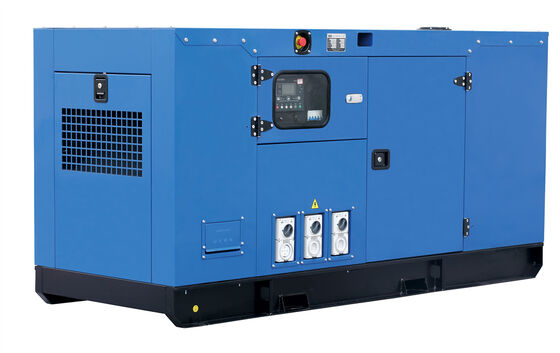

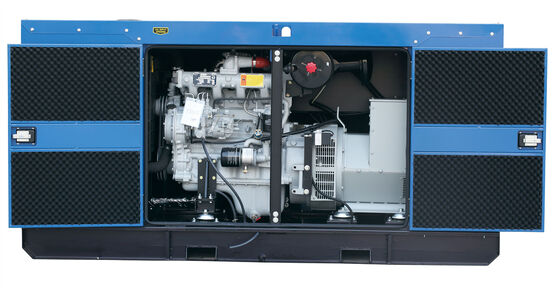

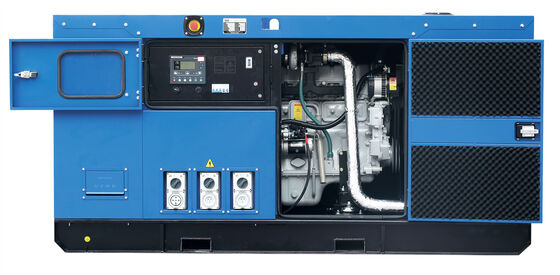

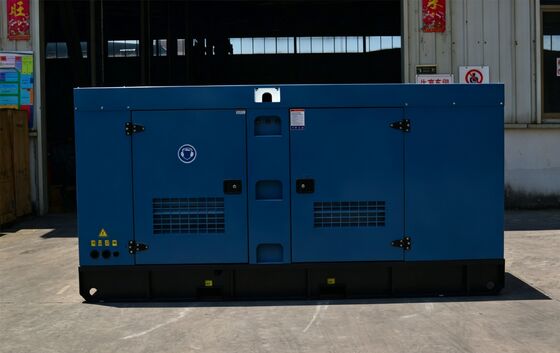

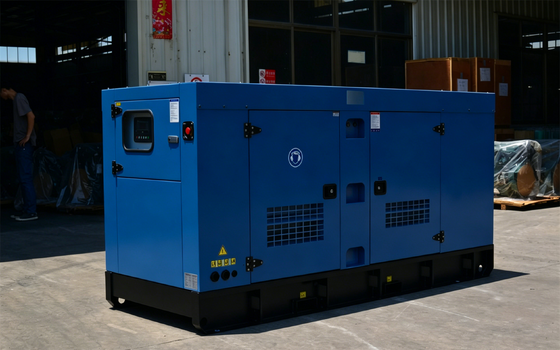

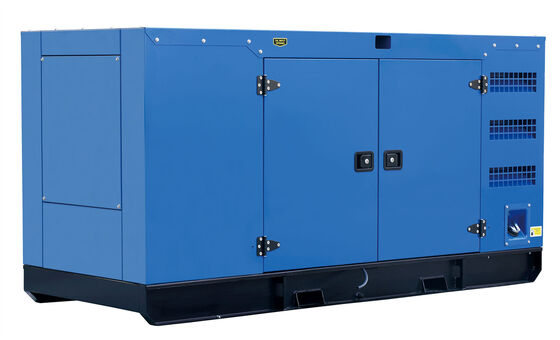

Doosan Intelligent Diesel Generator Series
High-quality Doosan diesel generators available in various configurations including silent and open type designs. Model DP126CA is a dependable power generator for industrial and commercial environments with customizable power configurations ranging from 260kW to 1000kW.
Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 0 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 1 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 2 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 3 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 4 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 5
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 325 358
Power Rating (kW) 260 286
Frequency (Hz) 50
Engine Model DP126CA
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97; includes 10% overload capability for 1 hour within 12-hour operation.
ESP (Emergency Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 6
Dimensions and Weight
Model & Type BDO358 (Open) BDO358S (Silent)
Length (L) mm 3100 4050
Width (W) mm 1050 1510
Height (H) mm 2150 2050
Tank Capacity (L) 598 598
Engine Specifications
Engine Model & Manufacturer DP126CA (DOOSAN)
Engine Type 4-Cycle, In-line, 6-Cylinder Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 123 × 155 mm
Displacement 11.051 liters
Compression Ratio 16.5:1
Rotation Counter clockwise viewed from flywheel
Firing Order 1-5-3-6-2-4
Dry Weight 1058 kg
Dimension (LxWxH) 1,411 × 1,133 × 1,323 mm
Fly Wheel Housing SAE NO.1M
Fly Wheel Clutch NO.14M
Number of Teeth on Flywheel 106
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314E
Alternator Rated Power 260kw/325kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Manufacturer Profile
Established in 2004, Fujian Bobig Electric Machinery Co., Ltd. is an electrical machinery manufacturer specializing in technological research, production and sales. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, including 20 technicians.
Product Range
Our main products include air-cooled gasoline generators, air-cooled diesel generators, air-cooled welding & generating sets and water-cooled diesel generator sets. Our small air-cooled brushless generators and welding & generating sets have earned a great reputation in the market for their reliable quality.
Quality Commitment
We adhere to the principle of "Quality, Creation, Service and Development", continuously updating technology, improving quality and providing better service. Our advanced testing equipment includes CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment. We maintain strict quality control and have obtained ISO9000 Quality System Certification.
Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 7 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 8 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 9 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 10 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 11 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 12
Trade Show & Exhibition Experience
Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 13 Bobig Doosan Intelligent Diesel Generator Wechai Yuchai Deutz Sdec Super Silent Open 260kw 300kw 500kw 800kw 1000kw 14
After Sales Services
As a leading Chinese diesel generator manufacturer, we offer comprehensive export services including:
  • Customized manufacturing
  • Quality control
  • International logistics
  • Documentation and certification
  • Trade support
  • After-sales service
  • Customer training
  • Market support
  • Technical collaboration
We deliver tailored diesel generator solutions that meet international quality standards. Our experienced team handles all logistics to ensure timely delivery. We provide necessary documentation compliant with international trade requirements and offer after-sales support including technical assistance and spare parts supply.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer with our own factory located in Fujian, China. We welcome you to visit our facility and production line to see our quality control processes firsthand.
What is the minimum order quantity (MOQ)?
Our standard MOQ is 1 set. We are flexible and can discuss volume orders for larger projects to provide better pricing.
What is the delivery time after order confirmation?
Production time varies by quantity and inventory status. Typically 20-30 days for standard models. We'll provide a precise timeline upon order confirmation.
What payment terms do you offer?
We commonly accept T/T with 30% deposit and 70% balance before shipment. For established relationships, we can discuss other terms like L/C.
Do you perform factory inspection before shipment?
Absolutely. Every unit undergoes thorough testing in our factory before shipment.
