Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby

Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
daszek: Dostosowane
Gwarancja: 12 miesięcy/1000 godzin
Typ: Cichy (super cichy) lub otwarty, cichy itp., rzędowy / 6-cylindrowy / 4-suwowy / 4-zaworowy / 19 l,
Panel sterowania: Cyfrowy wyświetlacz LCD, głębinowe, ComAp, głębinowe / ComAp / Harsen / Smartgen 6110, Smartgen
Typ wyjścia: AC jedno-/trójfazowy
Kontroler: Deepsea/Smartgen/itp
Aplikacja: Indursty Bank itp
Napięcie znamionowe: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternator: Maraton, Stamford, SLG/Stamford/Maraton/Meccatle/Leroy-somer, Stamford Or Newtec, Engga
Nazwa produktu: Generator diesla, generator 63 kva, zasilany generatorem diesla YANGDONG, generator diesla w trybie
Kolor: Wymagania klientów
Częstotliwość: 50/60 Hz
Moc znamionowa: 63KVA
Silnik: Oryginalny Yangdong
metoda chłodzenia: Układ chłodzenia wodą
Podkreślić:

3 phase diesel generator 50kw

,

silent diesel genset for home

,

portable standby generator 63kva

Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: YANGDONG
Orzecznictwo: CE
Numer modelu: YD4EZLD
Zapłata
Szczegóły pakowania: sklejka
Czas dostawy: 30 dni
Możliwość Supply: 500 sztuk miesięcznie
opis produktu

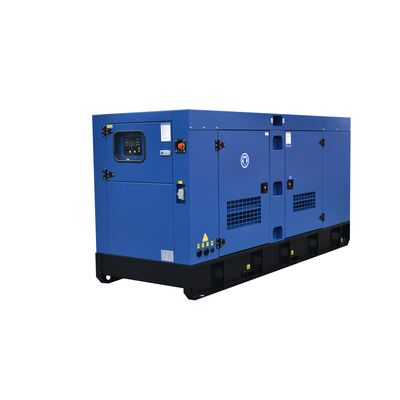

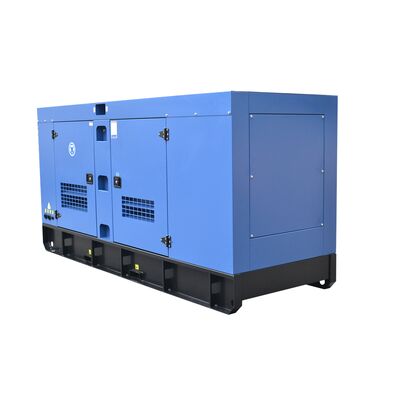

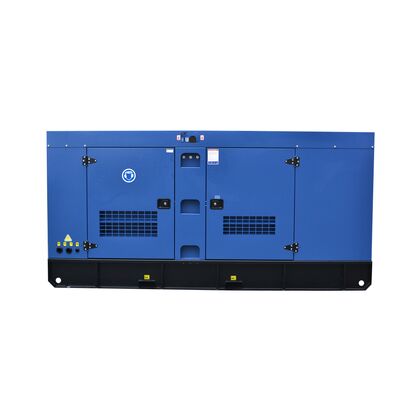

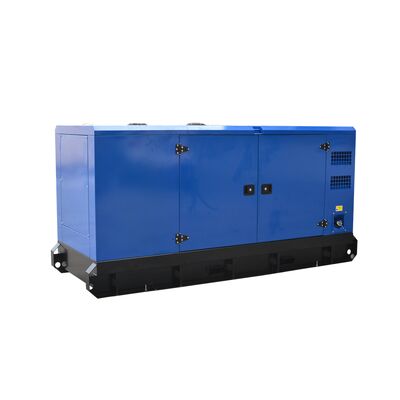

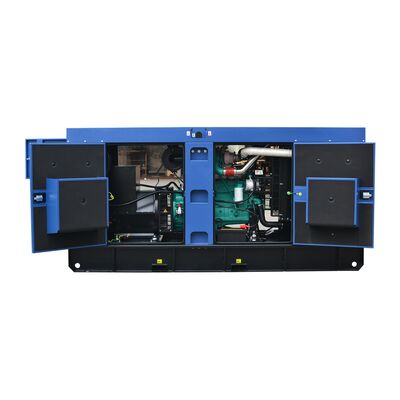

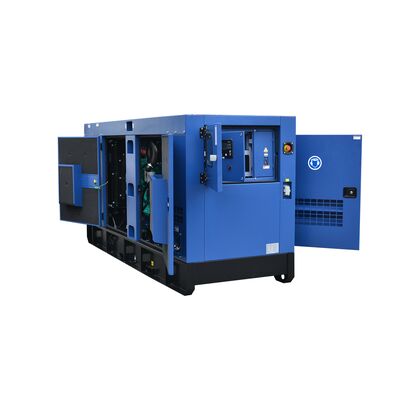

50kW 63KVA BOBIG YANGDONG Diesel Generator (Model: YD4EZLD)

Our 50kW 63KVA BOBIG YANGDONG diesel generator (Model: YD4EZLD) is designed to provide reliable power for a wide range of applications. Backed by the YANGDONG brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 50kW (63KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: YD4EZLD YANGDONG engine with advanced technology
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information
ParameterPrime PowerStandby Power
Rated Power (kVA)6369
Power Rating (kW)5055
Frequency (Hz)50
Engine ModelYD4EZLD
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (customizable)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
Engine Specifications
Engine Model & ManufacturerYD480D (YANGDONG)
No. of Cylinders4
Injection TypeDirect
AspirationTurbocharged
ConfigurationVertical
Bore105 mm
Stroke118 mm
Compression Ratio18
Displacement4.087 L
Dry Engine Weight350 kg
Dimension (L*W*H)892*618*740 mm
The Flywheel Shell InterfaceSAE3
Governed Engine Speed1500
Continuous Power without Fans63
Standby Power70
Number of Flywheel Teeth119
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-224E
Alternator Rated Power50kw/63kva
Rated Voltage (V)230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Dimension and Weight
ModelBY69 (Open type)BY69S (Silent type)
Length (L) mm18502500
Width (W) mm730930
Height (H) mm13501220
Tank Capacity (L)115115
Environmental Adaptability
  • Ambient Temperature: Operates effectively in +5°C to +40°C range
  • Altitude: Suitable for use at altitudes up to 1000m
  • Custom Solutions: Available for different environmental conditions
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Our professional after-sales service team is available 24/7 for technical support, maintenance, and repair services.

Why Choose Us
  • Brand Reputation: YANGDONG is a trusted brand with proven reliability
  • Quality Assurance: Manufactured in strict accordance with international standards
  • Customization Options: Tailored solutions based on specific requirements
  • Comprehensive Testing: Each generator undergoes rigorous quality inspections
Company Information

We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we specialize in gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and related equipment. Our company holds ISO9000 Quality System Certification and utilizes advanced equipment including CAD systems, auto assembling equipment, and digital testing systems.

Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 0 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 1 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 2 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 3 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 4 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 5 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 6 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 7 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 8 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 9 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 10 Inverter Generator YANGDONG 3 Phase Generators 63kva 50kw Silent Genset diesel Generator for Home Use Portable Standby 11
Frequently Asked Questions
What is your MOQ, payment method, delivery time?

MOQ is 1 set. Payment methods include 30% T/T deposit with 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery time is 10-15 working days after receiving deposit.

Which port do you use for export?

Fuzhou port, Fujian province or as per customer request.

Do you provide spare parts for maintenance?

Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance.

Can you offer parts if needed?

Yes, we can supply parts at any time, typically shipped within 3-5 days.

Can you customize voltage, frequency, tank capacity, phase and color?

Yes, all specifications can be customized according to your requirements.

What is your distribution policy?

We welcome distributors worldwide and can provide authority certificates and sign distribution agreements.
